GPIO Control

Settings

(1) Use a comma to delimit arguments in the command (Cmd) field for example [mpc,load,My Playlist ]

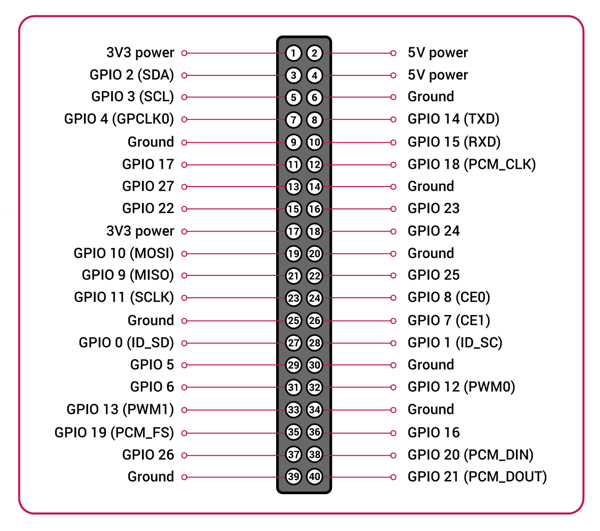

(2) Broadcom SoC pin numbering is used. Refer to the GPIO pinout diagram for GPIO to board pin mapping.
(3) GPIO pins are configured as Input/Pull-up and are 3V3. Pins GPIO2 and GPIO3 have fixed pull-up resistors.
(4) At power-on pins are set to input mode, GPIO0 - GPIO8 are pull-ups to 3V3, GPIO9 - GPIO27 are pull-downs to 0V.

GPIO Cmd
GPIO Cmd
GPIO Cmd
GPIO Cmd
GPIO Cmd
GPIO Cmd
GPIO Cmd
GPIO Cmd
Bounce time in miliseconds. This parameter is used to ignore all subsequent changes for the bounce time after the first change is reported.
Reconnect
Reconnect System restarted
Reconnect System shut down
